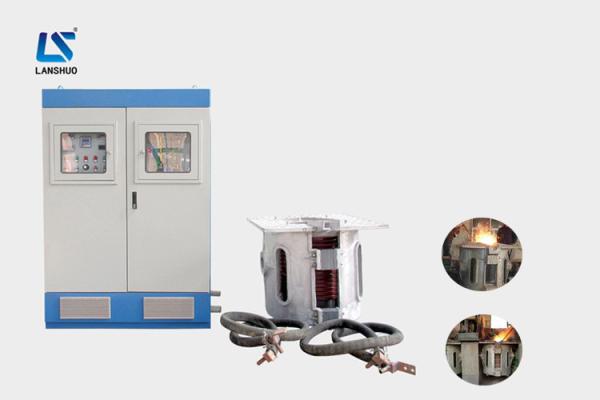

KGPS-0.5T/400KW Aluminium Induction Melting Furnace Large Capacity
1. Brief Introduction of Medium Frequency Induction Melting
Furnace:
Medium Frequency Induction Furnace Mainly used in melting steel,
iron, copper,aluminum and alloy, is with high melting efficiency,
good electricity saving effect, good metal component uniformity,
less burning loss, speedy temperature rise, easy controlof
temperature, is suitable to all kinds of metal melting.
KGPS series Medium Frequency melting induction furnace, aluminum
shell mechanical tilt, is for melting cast steel, cast iron,
stainless steel, copper, aluminum and other metals or its alloy.It
is particularly suited to small and medium-size enterprises, or as
Precision Casting Material Test.
2. Technical Parameter of Large Induction Melting Furnace:
| Model | KGPS-0.5T/400KW |
| Rated Power | 400kw |
| Rated Capacity | 0.5T |
| Matching transformer's capacity | 500KVA |
| Voltage | 380V, 50/60HZ |
| MF Frequency | 2000HZ |
| Medium Voltage | 750V Phase |
| DC Voltage | 500V Phase |
| DC Current | 800A Phase |
| Rated Temperature | 1600°C |
| Closed Loop Water Cooling Tower | LSN-30B |
3. Large Induction Melting Furnace Application:
(1) iron, pig iron, cast iron;
(2) steel, stainless steel, cast steel, carbon steel and bearing
steel;
(3) gold, silver, platinum;
(4) copper, brass, bronze;
(5) aluminum, aluminum alloy;
(6) zinc, lead, tin, magnesium, nickel, titanium.
4. Part of the melting furnace:
1). Furnace Parts: The mechanical parts of the MF furnace consisted of furnace
pot,water power introduced into the system, titling device and
other parts.
2). Furnace Ports: Furnace port including furnace shell, induction coil etc.
3). Furnace Shell:
| Main Power Cabinet | Furnace Shell | Reducer | Water Cooled Cable | Crucible Mould | Induction Coil |
 |  |  |  |  |  |
5. Large Induction Melting Furnace Packaging:
As for packing of KGPS induction melting furnace:
wooden / plywood cases and the furnace is packed with wrapping film
and the case is filled with foam,for waterproof and shockproof.
As for shipping of KGPS induction melting furnace:
1. If you have a shipper in China, we can send the machines to him
or her for free.
2. If you want us to send the machines to you directly, we can send
them to any main port of China promptly.
