aluminum shell Foundry Electric Aluminum
Copper/Brass/Bronze/Steel/Iron Induction Melting Smelting Furnace
1. Furnace body of Medium Frequency Induction Melting Furnace:
The furnace body is made by thick aluminum alloy shell to reduce
the magnetic leakage and ensure furnace body strength.The thick T2
standard copper tube is taken use for induction coil.
2. Control Cabinet of melting furnace:
The main control board is microcomputer control, one - key zero -
pressure start. The separate insolation design of water pressure meter can make the user convenient and intuitive to monitor the
water pressure

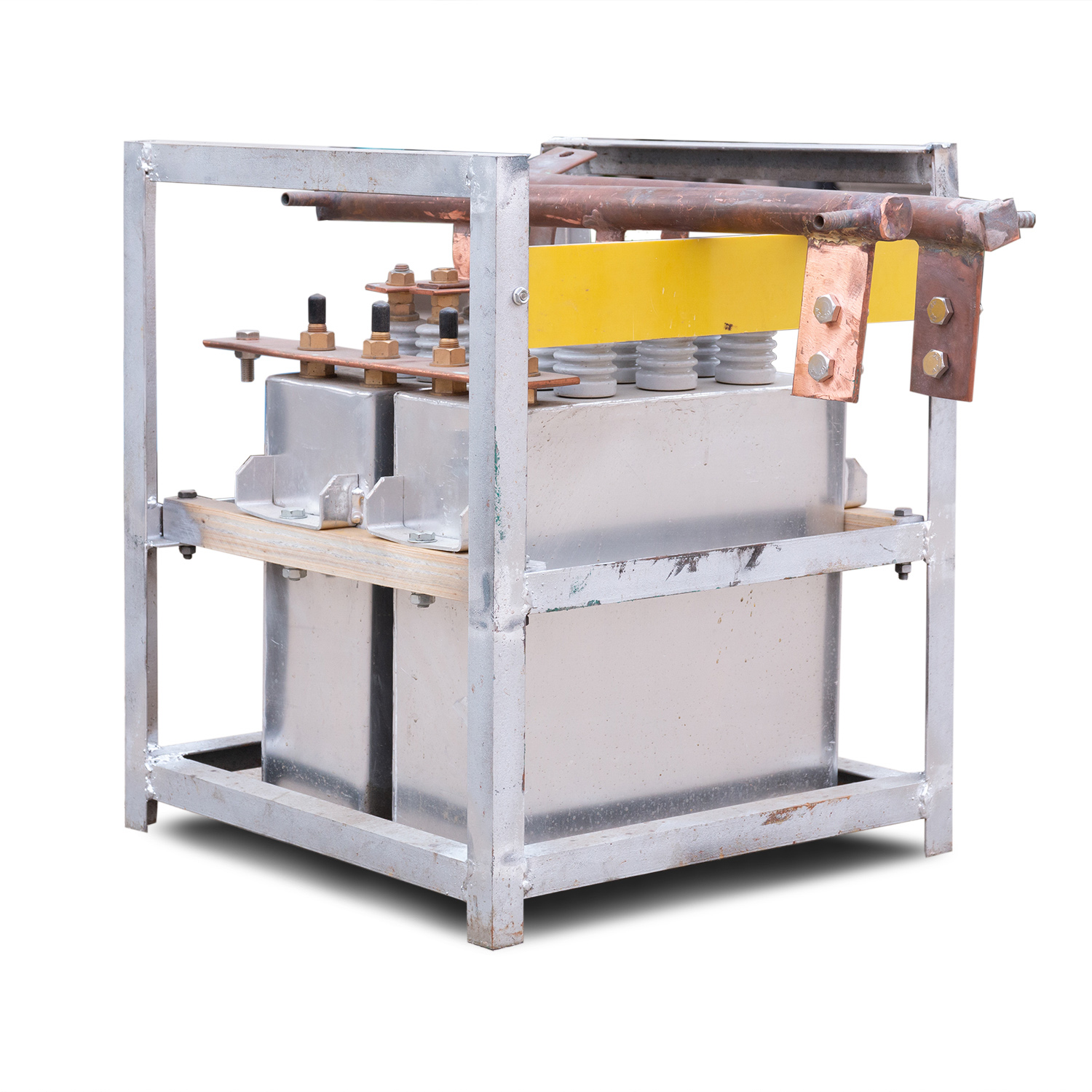

3. The double-layer mica insulation technology is used for the
insulation treatment of the capacitor. Even if water is sprayed on
the capacitor accidentally, the insulation strength of the cabinet
can be ensured.
4.Furnace Tilting Reducer is used to control the rotary of the
furnace body.
The tilting reducer is equipped with three-stage turbine speed.
With good self-locking and stable rotary performance.
2. Technical Parameter of Large Induction Melting Furnace:
| Model | KGPS-0.5T/400KW |
| Rated Power | 400kw |
| Rated Capacity | 0.5T |
| Matching transformer's capacity | 500KVA |
| Voltage | 380V, 50/60HZ |
| MF Frequency | 2000HZ |
| Medium Voltage | 750V Phase |
| DC Voltage | 500V Phase |
| DC Current | 800A Phase |
| Rated Temperature | 1600°C |
| Closed Loop Water Cooling Tower | LSN-30B |
3. Large Induction Melting Furnace Application:
aluminum shell medium frequency melting furnace required little
area, which is easy to operate, easy to use, and inexpensive,
suitable for melting all kinds of pig iron, cast iron, scrap, iron
slag, etc.
4. Part of the aluiminum shell induction melting furnace:
1). Furnace Parts: The mechanical parts of the MF furnace consisted of furnace
pot,water power introduced into the system, titling device and
other parts.
2). Furnace Ports: Furnace port including furnace shell, induction coil etc.
3). Furnace Shell:
| Main Power Cabinet | Furnace Shell | Reducer | Water Cooled Cable | Crucible Mould | Induction Coil |
 |  |  |  |  |  |
5. Large Induction Melting Furnace Advantage:
Standard features of induction melting furnace:
Open furnace structure. The basic structure: with unique shock
absorber and solid magnetic yoke, two cylinder with thick wall
seamless rectangular steel tube is welded into one structure, being
safer, firm, durable, high efficient. The upper end of the
induction furnace can be disassembled to facilitate the replacement
of the coil.
Hydraulic tilting. Furnace can rotate around the pouring spout, and
tilting with proportional control, through controlling buttons of
hydraulic station and the handle of tilting control device . Its
tilting angle is vertically at 95 degrees and it can stay in any
position in the process of rotating, as well as to change titling
speed to more quicker or more slowly. It uses the manual valve
operation and double machine double pump, with remote manual
control system. Some other company only have single pump control.
Magnetic yoke. The sensor is enclosed with a magnetic yoke,
covering an area is over 65%, so the leakage is small and achieve
the maximum electrical efficiency. Compared with aluminum shell
furnaces, steel shell furnace can save nearly 5% power consumption.
Anti-fall protection device (for more than 2 ton capacity). During
the process of tilting furnace, the anti-falling protective hood
will be automatically raised to form a protective barrier to
prevent the personnel from falling.
Factory test.
