electric high frequency induction heating device machine for
forging
1. Features of induction heating equipment::
1. The production operation is simple, the feeding and discharging
are flexible, and the degree of automation is high, which can
realize on-line production;
2. The workpiece heating speed is fast, the oxidation
decarburization is less, the efficiency is high, and the forging
quality is good;
3. The heating length, speed and temperature of the workpiece can
be precisely controlled;
4. The workpiece is heated evenly, the temperature difference
between the core and the surface is small, and the control accuracy
is high;
5. The integrated design of the sensor furnace body, different
sensors are designed with quick-change joints, and the replacement
is simple and convenient;
6. All-round energy-saving optimization design, low energy
consumption, high efficiency, and lower production cost than
coal-fired production;
7. In line with the environmental protection standards, the
pollution is small, and the labor intensity of the workers is also
reduced.
3. Applications of IGBT high frequency induction heating machine:
(1) Heating: mainly for carbon steel, stainless steel, alloy, brass, aluminum, etc. heating.

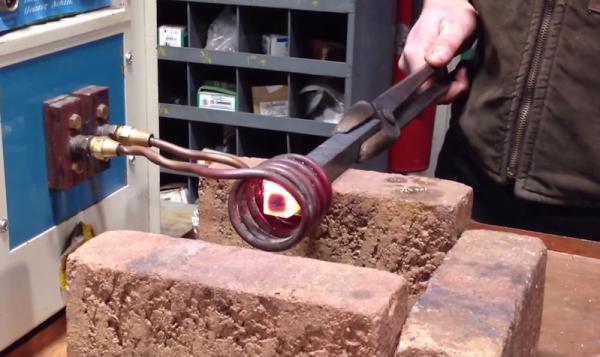

(2) Forging: Whole and partial induction forging for metal bar.
(3) Workpiece hot forging and rolling: standard parts, fasteners, automobile parts, small hardware, round bar and billet, etc.
(4) Specific application for the induction forging heater: bolts
and nuts forging and hot upsetting, pipe induction forging and
forming, auto parts (connecting rod, crank shaft, etc.), cast iron
beam heating and continuous heating, oxygen bottle forging, rivet
heating, long / round / square / angle bar and billet heating, etc.
4. Technical Parameters of LSW-160 IGBT high frequency induction heating machine:
| Model | LSW-160 |
| Working Voltage | 380V, 50/60HZ |
| Max input power | 160kw |
| Oscillation frequency | 18-23KHZ |
| Duty cycle | 100% |
| Cooling water flow | 50L/Min,0.2MPa |
| Weight | 260kg |
| Dimension (L*W*H ) | 600*480*1360mm / 800*500*580mm |
| Material | stainless steel |
| Color | support customized |
| Usage | metal heating,quenching etc |
The working principle of induction heating equipment:
Induction heating machine is a kind of three-phase power frequency
alternating current, rectified into direct current, and then the
direct current into adjustable current, supply the alternating
current flowing through the capacitor and the induction coil, and
generate high density in the induction coil. The magnetic line of
force is cut, and the metal material contained in the induction
coil is cut, resulting in a large eddy current in the metal
material.
This eddy current also has some properties of intermediate
frequency current, that is, the free electrons of the metal itself
flow in the metal body with resistance to generate heat. For
example, if a metal cylinder is placed in an induction coil with
alternating intermediate frequency current, the metal cylinder is
not in direct contact with the induction coil, and the temperature
of the energized coil itself is very low, but the surface of the
cylinder is heated to the point of redness or even melting , and
the speed of this redness and melting can be achieved only by
adjusting the frequency and the strength of the current. If the
cylinder is placed in the center of the coil, the temperature
around the cylinder will be the same, and the heating and melting
of the cylinder will not produce harmful gases or pollute the
environment with strong light.
