220V Intermediate Frequency small IGBT Inventor metal brazing
induction heating machine
1. High Frequency Induction Brazing Machine :

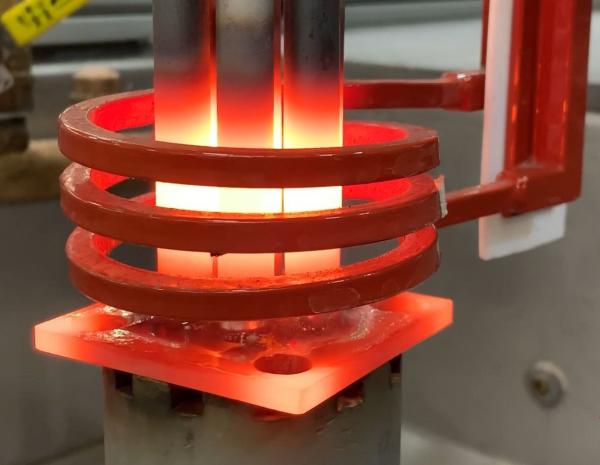

The unique design of the high-frequency induction heating furnace
lies in its inductor. The inductor is a single-turn or multi-turn
ring-shaped induction coil made of red copper. Different inductors
can be designed according to the specific diameter of the tube. The
transformer has a quick-change external connector for the inductor,
which is convenient for different inductors. Replacement, can
achieve a multi-purpose machine! The inductor is not in direct
contact with the pipe, and the heating speed is very fast and the
heating is uniform, so there is no oxidation and decarburization at
the welding point, the pipe deformation is small, and the
appearance after welding is beautiful, without any other treatment.
2. Technical Parameters of LSW-16 Induction Heating Machine:
| Model | LSW-16 |
| Working Voltage | 220V, 50/60HZ |
| Max input power | 16kw |
| Oscillation frequency | 28-40KHZ |
| Duty cycle | 100% |
| Cooling water flow | 20L/Min,0.15-0.2MPa |
| Weight | 25kg |
| Dimension (L*W*H ) | 420*200*360mm |
| Material | stainless steel |
| Color | support customized |
| Usage | metal heating, brazing,melting etc |
3. Main characteristics of LSW-16 Induction Brazing Machine :
The high-frequency induction heating furnace is small in size,
light in weight, and compact in appearance; equipped with advanced
IGBT transistors inside, the heating performance is stronger, and
the circuit board design is more optimized; The software is better,
and it is deeply loved by new and old customers.
A. Fast Heating: the quickest heating speed is less than 1 second,
and the heating speed adjusting and control are available.
B. Widely Applicable: it can be used to heat various metal parts.
C. Low Power Consumption: compared with traditional heating method,
the heat efficiency can be over 95%.
D. High Effectiveness: fast warming and uniform heating, reduce the
workpiece oxidation and deformation.
E. High Efficiency: can do 24 hours continuously working with
comprehensive full load design.
F. Small Footprint & Light Weight:save space of workshop and easily
moved.
G. Easy Operation: easy installation and operation, which can learn
in only several minutes. It can be started to peform on condition
that water and power supply are available.
H. Environmental Friendly: free of noisy, exhaust gas and dust, so
can provide a better working surroundings
4. Induction Brazing Machine Application:
Heat treatment industry
1. a variety of steam, Motorcycle high-frequency hardening heat
treatment, such as: crankshaft, connecting rod, piston pin,
camshaft, valves, various gears within the gearbox, a variety of
fork, all kinds of spline shaft, drive axle, various small shaft
crank pin, a variety of rocker, rocker shaft, high-frequency
hardening heat treatment.
2. the hardware high-frequency hardening heat treatment, such as
pliers, hammers, strong pliers, wrenches.
3. hydraulic components such as: piston pump plunger, rotor pump
rotor, conversion shaft of the valves, gear of gear pump high
frequency quenching.
4. various electric tools gear shaft of the high-frequency
hardening heat treatment.
5, a variety of carpentry tools, such as: axes, planing and other
heat treatment.
Forging industry
1. plate heating, bending and forming.
2. standard parts, fasteners through the hot forming.
3. the hardware tools through heat, such as pliers, wrenches and
other heat through hot forming.
4. taper shank drill rod extrusion prospecting.
5. the pipe through the hot forming, such as bends and so on.
Brazing
1. carbide cutting tools welding. Such as turning, milling, cutter
knife.
2. the diamond saw blade welding. Such as diamond saw blade,
abrasive, jagged welding. Exploration drill bit used in welding,
such as word drill, drill welding horns.
3. brass, copper
Smelting
Steel,iron, non-ferrous metals,graphite crucible smelting
