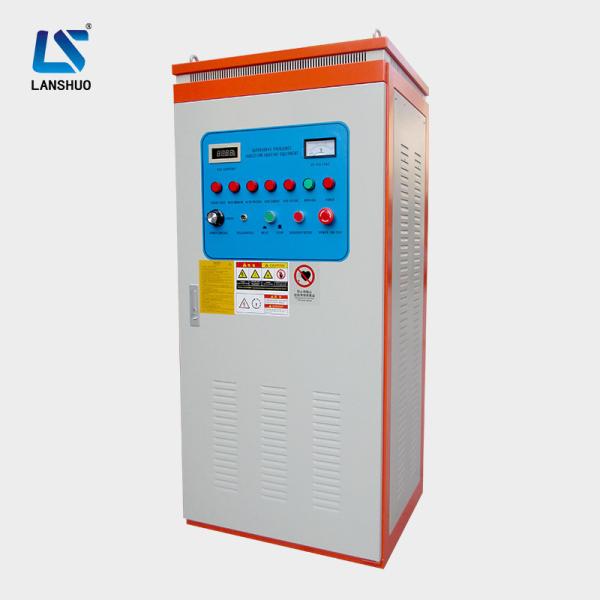

    18 - 23KHZ Induction Heating Machine 160kw Max Input Power For Stainless Steel

    Ask Lasest Price
    Brand Name : Lanshuo
    Model Number : LSW-160
    Certification : CE
    Price : USD 1000-20000 / set
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 2000 sets per year
    Delivery Time : 5-7 working days after receiving advanced payments
    • Product Details
    • Company Profile

    18 - 23KHZ Induction Heating Machine 160kw Max Input Power For Stainless Steel

    160kw Electric high frequency IGBT metal workpiece induction heating machine

    1. Feature of IGBT induction heating machine:

    1. It adopts the most advanced IGBT frequency conversion control technologies to ensure the high efficiency and maximum output power.
    2. It has the constant current and power control function, which can significantly optimize metal heating process, realize the high efficient and fast heating and bring into play the superior performance of the products.
    3. It has the function of three-stage time setting represented by heating-heat preservation-cooling. Furthermore, the power for heating and heat preservation is available for independent regulation, which can facilitate the heating and heat preservation, which is applicable to places requiring bulking and repeated heating.
    4. A maximum ten types fault protection and display of over-current, over-voltage, water shortageand phase missing can provide higher reliability and durability.
    5. It is safe and reliable, and requires no equipments of ten thousand voltage, and thus can ensure the safe operation.
    6. The comprehensive full load design is available for 24-hour continuous operation.
    7. It is available for ultraviolet temperature detection, which can realize the automatic control of temperature, improve the heating performance and simplify the manual operation.

    2. Applications of IGBT induction heating machine:

    (1) Heating: mainly for carbon steel, stainless steel, alloy, brass, aluminum, etc. heating.

    (2) Forging: Whole and partial induction forging for metal bar.

    (3) Workpiece hot forging and rolling: standard parts, fasteners, automobile parts, small hardware, round bar and billet, etc.

    (4) Specific application for the induction forging heater: bolts and nuts forging and hot upsetting, pipe induction forging and forming, auto parts (connecting rod, crank shaft, etc.), cast iron beam heating and continuous heating, oxygen bottle forging, rivet heating, long / round / square / angle bar and billet heating, etc.


    3. Technical Parameters of LSW-160 IGBT induction heating machine:

    ModelLSW-160
    Working Voltage380V, 50/60HZ
    Max input power160kw
    Oscillation frequency18-23KHZ
    Duty cycle100%
    Cooling water flow50L/Min,0.2MPa
    Weight260kg
    Dimension (L*W*H )600*480*1360mm / 800*500*580mm
    Materialstainless steel
    Colorsupport customized
    Usagemetal heating,quenching etc
