Brand Name : | Lanshuo |
Model Number : | LSW-60 |
Certification : | CE |
Price : | |
Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability : | 2000 sets per year |
Delivery Time : | 5-7 working days after receiving advanced payments |
1. Brief introduction of IGBT electric induction heating equipment:
Induction heating is the process of heating an electrically conducting object (usually a metal) by electromagnetic induction, through heat generated in the object by eddy currents (also called Foucault currents).
An induction heater consists of an electromagnet, and an electronic oscillator which passes a high-frequency alternating current (AC) through the electromagnet.
IGBT () technology, high conversion efficiency; Energy saving
15%-30% , compared to SCR/KGPS technology
Much more efficient than gas-fired and coal-fired method
100% start-up success rate; power factor > 95%
Perfect and complete protection functions, increasing machine's
reliability & stability
No special foundations required, Low operating cost, Easy operation
Modular design, ease of maintaining and repairing
2. Technical Parameters of LSW-60 electric induction heating equipment:
Model | LSW-60 |
Working Voltage | 380V, 50/60HZ |
Max input power | 50kw |
Oscillation frequency | 18-35KHZ |
Duty cycle | 100% |
Cooling water flow | 28L/Min,0.15MPa |
Weight | 150kg |
Dimension (L*W*H ) | 730*550*1030mm / 460*730*460mm |
Material | stainless steel |
Color | support customized |
Usage | metal heating,quenching etc |

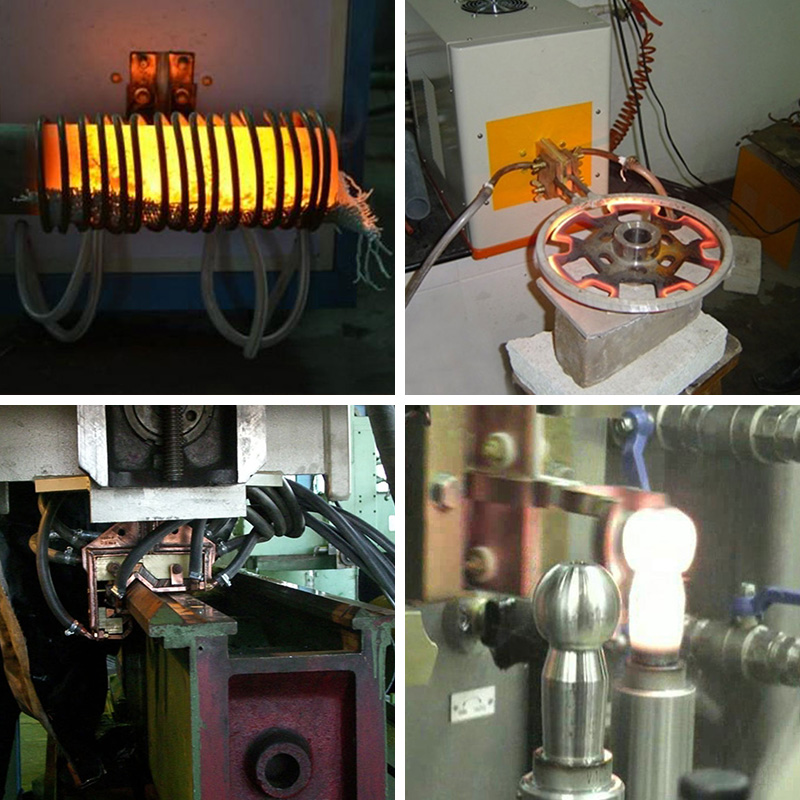

3. Applications of elctric induction heating machine:
1). Heating metal raw materials for forging, heating building site
use rebar, fast water boiling, heating band saw,
2). Melting: with a higher power, it can be used to melt less than
50KG gold, silver, aluminum.
3). Welding: soldering, cooper soldering, fast speed cutting tools
soldering, hard alloy soldering/welding, copper tube soldering.

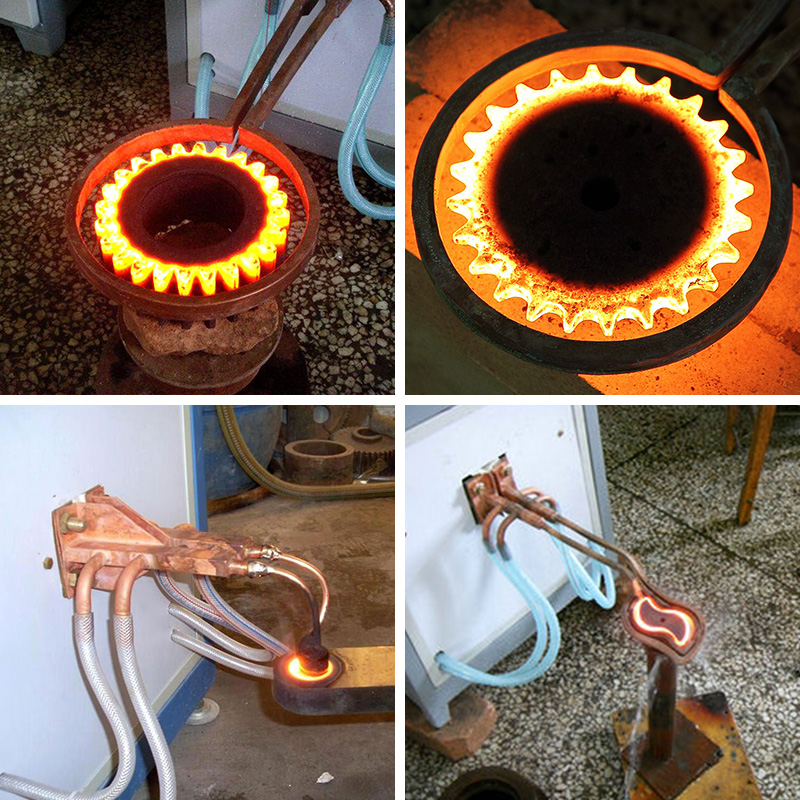

4). Heat treatment: Annealing, after welding heat treatment, metal
parts internal stress relive, shaft, and gear surface
hardening/quenching.
5). Garage auto repairing use bolt remove, car dent removal.
4. Features of electric induction heating equipment:
1.It adopts the most advanced MOS, IGBT frequency conversion
control technologies to realize automatic tracking of frequency.
2. It has the constant current and power control function, which
can significantly optimize metal heating process, realize the high
efficiency and fast heating and bring into play the superior
performance of the products.
3. About ten types fault protection and display of over-current,
over-voltage, water shortage and phase missing can provide higher
reliability and durability.
4. It is safe and reliable, and requires no equipments of ten
thousand voltage, and thus can ensure the safe operation.
5. It is available for infrared temperature measurement, which can
realize the automatic control of temperature, improve the heating
performance and simplify the manual operation.
![]() |
