LSZ-70 70kw Electric Metal induction melting furnace for steel brass scrap

1. Brief Introduction of Electric Induction Melting Furnace:

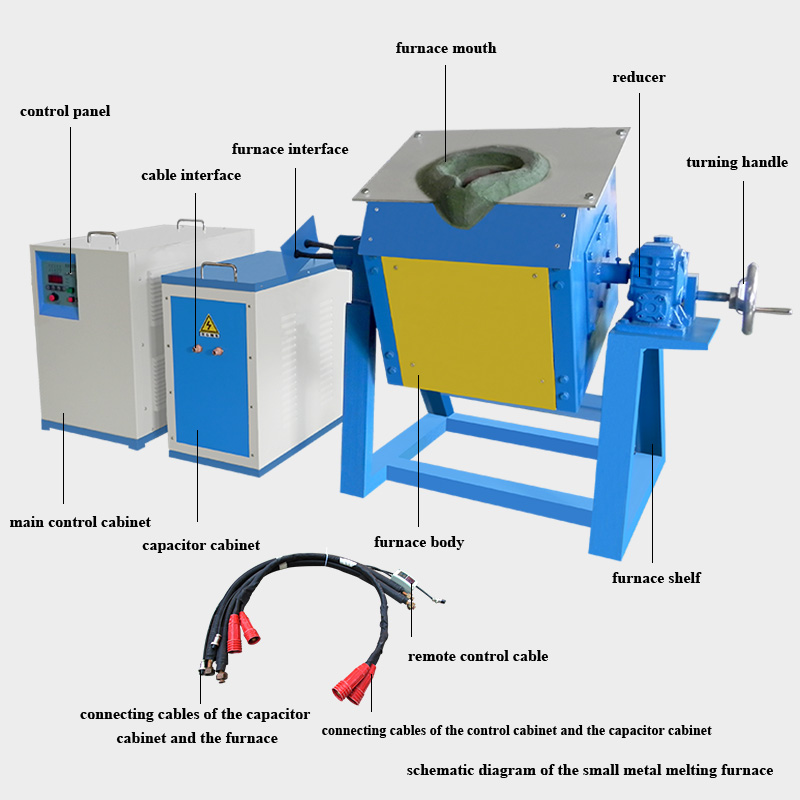

Induction Melting Furnace Equipment Composition:

medium frequency power supply, capacitor cabinet, furnace body, mechanical titling device( or hydraulic titling device), water distributor, crucible mold(graphite crucible,iron crucible), water-cooled cable, connecting copper bar.

Induction Melting Furnace Working Principle:

The working principle is that put the metal cylinder into the induction coil with alternating intermediate frequency current, the metal cylinder is not connected with induction coil directly, the temperature of energized coil itself is very low,but the surface of cylinder is heated to redness even melting,and the speed of redness and melting is achieved by adjusting the frequency and current strength.

2. Melting Capacity of Electric Induction Melting Furnace:

1. maximum input power :70KW
2. oscillation frequency: 1-20khz
3. input current: 105A
4. output voltage: 70-520v
5. input voltage: three-phase 380V, 50 or 60HZ
6. cooling water requirements: 0.2mpa, 5L/min7, load duration :100%

3. Electric Gold Aluminum Metal Induction Melting Furnace Application:

4. Main technical parameters of LSZ series induction melting furnace:

5. Electric Gold Aluminum Metal Induction Melting Furnace Feature:

1. small volume, light weight, high efficiency, energy-saving,electricity-saving;

2. low temperature around furnace,less dust and smoke,good working environment;

3. easy operation process,reliable melting operation

4. uniform heating temperature,less burning loss,uniform metal composition, good casting quality.

6. Packaging of Electric Gold Aluminum Metal Induction Melting Furnace:
