IGBT 50kw Metal Workpiece gear and shaft Induction Quenching
hardening equipment machine
1. What is induction hardening?
Induction hardening uses induced heat and rapid cooling (quenching)
to increase the hardness and durability of steel. Induction is a
no-contact process that quickly produces intense, localized and
controllable heat. With induction, only the part to be hardened is
heated. Optimizing process parameters such as heating cycles,
frequencies and coil and quench design result in the best possible
outcomes.

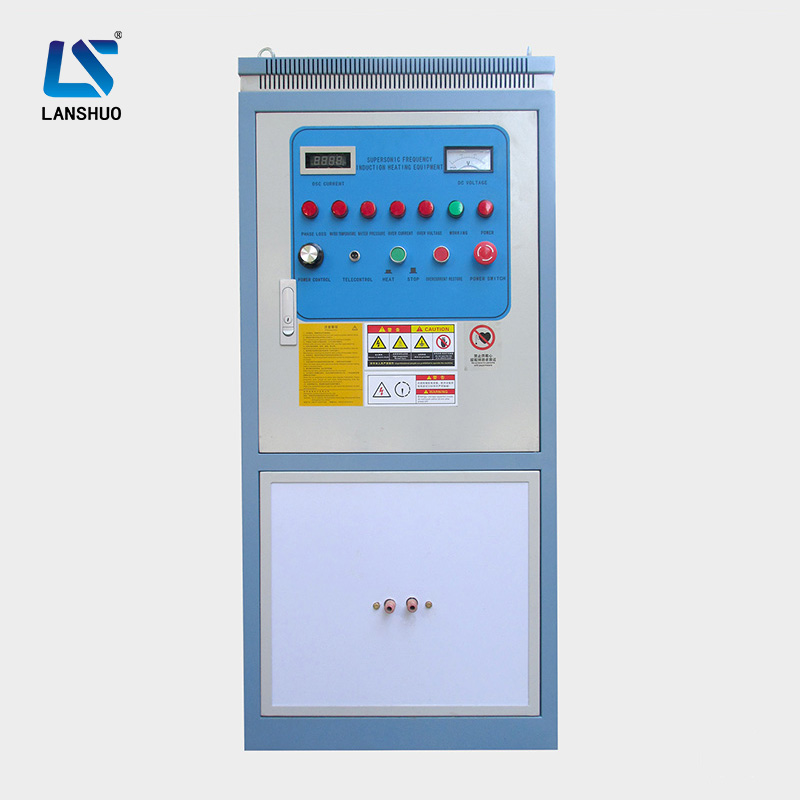

2. Technical Parameters of LSW-50 Induction Quenching Equipment:
| Model | LSW-50 |
| Working Voltage | 380V, 50/60HZ |
| Max input power | 50kw |
| Oscillation frequency | 18-35KHZ |
| Duty cycle | 100% |
| Cooling water flow | 32L/Min,0.1MPa |
| Weight | 120kg |
| Dimension (L*W*H ) | 550*650*1260mm |
| Material | stainless steel |
| Color | support customized |
| Usage | metal heating, brazing,melting etc |
3. Main characteristics of LSW-50 Induction Quenching Equipment:
Main Feature of induction quenching hardening machine:
1. Adoping MOSFET and IGBT, inverting device, tracking frequency
automatically
2. High frequency, heated quickly, its power consumption is only
20%-30% of electronic tube induction hardening machine and other
heating style.
3. Security and reliability, the equipments have the secure voltage
and it’s secure to operate.
4. Manual, automatic regulating automatically, it can protect
itself from over voltage, over current, lack of water, phase fail,
over hot, etc.
4. Induction Quenching Equipment Application:
1. gears ,shaft, hardening

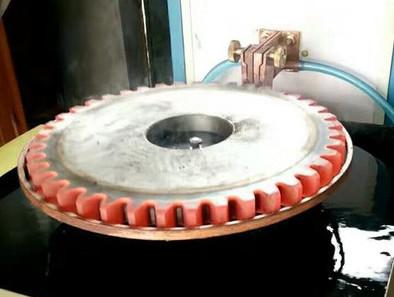

2. whole gear hardening, big gear single teeth hardening
3. big shaft hardening, spline shaft hardening,
4. hand tools hardening
5. train wheel hardening
6. roller hardening
7. chain wheel hardening
8. auto parts hardening
Equipped with CNC quenching machine fully automatic hardening
various of metal workpiece
5. What are the benefits?
1) IGBT inversion technology based LC series circuit .
2) Phase locking looping technology and soft switch ensure good
reliability and realize power and frequency tracking automatically.
3) Diode rectifier cause high power factor more than 0.95
4) Power can be instantly turned on or shut off with working in
100% load
5) Perfect protective circuit and cooling system designed.
6) Low energy consumption: converts up to 97.5% above of the
expended energy into useful heat. Energy saving 15%-30% compared
with SCR induction heating machine.
7) Safety Operating and easy installation.
• Heat treatment for various hardware and tools, such as plier,
wrench, hammer, ax,screwing tools and shear
• Heat treatment for various automobile and motorcycle fittings,
such as crankshaft,connecting rod, piston pin, chain wheel,
aluminum wheel, valve, rock arm shaft,semi drive shaft, small shaft
and fork.
• Heat treatment for various electric tools, such as gear and axes.
• Heat treatment for machine tools,such as lathe deck and guide
rail.
• Hardening for various hardware metal parts and machined parts,
such as shaft,gear chain wheel, cam,chuck and clamp etc.
• Heating for hardware molds, such as small-size mold, mold
accessory and inner hole of mold.
• Annealing of various stainless steel products, such as stainless
steel basin,annealed and extruded can, annealed folded edge,
annealed sink, stainless steel tube, tableware and cup.
