Steel Products Annealing Normalizing Tempering furnace Industrial
Heating Equipments trolley type Bogie Furnace
1. Trolley heat treatment furnace Mainly Application:
The equipment is widely used in universities, research institutes,
industrial and mining enterprises such as powder, military,
electronics, metallurgy, medicine, ceramics, glass, machinery, new
material development, special materials, refractories, building
materials, chemicals, metal sintering and metal heat treatment
Other experiments and production
2. Trolley Type Furnace Characteristics:
1. The furnace material is mullite brick, strong and durable and
does not drop powder in high temperature, heat capacity is small,
energy saving above 50%
2. The heating element is made of High quality Alloy Resistance
Wire, which can bear large load, stable and long service life
3. The heating rate is fast, from room temperature to 1000 degrees,
generally takes 15-30 minutes
4. High precision of temperature control, small temperature
compensation and temperature accuracy ± 1 ° C
5. Using intelligent PID temperature control instrument, with
program function, can set the temperature rise curve, can be
programmed 30 segments
6. Electronic components are used Delixi products, with leakage
protection, safe and reliable
7. The machine will send out an alarm signal to the
over-temperature during the working process, and automatically
complete the protection action.
8. When the instrument program is set, just press the run button
and the next work will be completed automatically
9. Optional air inlet can be used to purge and protect the inert
gas such as air. It can also be installed with an exhaust chimney
and connected with stainless steel bellows to discharge the toxic
and harmful gases volatilized in the furnace to the designated
location.
3. Brief Introduction of Trolley Type Resistance Furnace:
Heat treatment equipment provides annealing, tempering, quenching,
carburizing, nitriding, heating to the workpieces.
Heat treatment furnace is common name of various kinds of
industrial furnace which provide metal heating treatment to all
kinds of metal workpieces. It has lower temperature compared with
heating furnace. Heat treatment furnace can be adopted with all
models of heating furnaces but asks more stringent temperature
control and furnace atmosphere.
Heat treatment furnace is divided into annealing furnace, quenching
furnace, tempering furnace, normalizing furnace, quenching and
tempering furnace, carburizing furnace, nitriding furnace, melting
furnace. Mainly used for high chromium, high manganese steel
castings, ductile iron, roll, steel, stainless steel quenching,
annealing, aging and a variety of mechanical parts heat treatment.
Welding parts to eliminate stress annealing, aging and other heat
treatment process. Heating methods are electric heating, fuel, gas,
coal, hot air circulation and etc.
This furnace type is used where high temperatures and large
specific loading weights are required, and can be primarily found
in the area of heating steel slabs and blocks (temperatures between
1200° C and 1380° C) as well as in the ceramics and heat-resistant
industry (temperatures between 1000° C and 1850° C). The return of
the bogie hearth is done either on the side ode below the furnace.

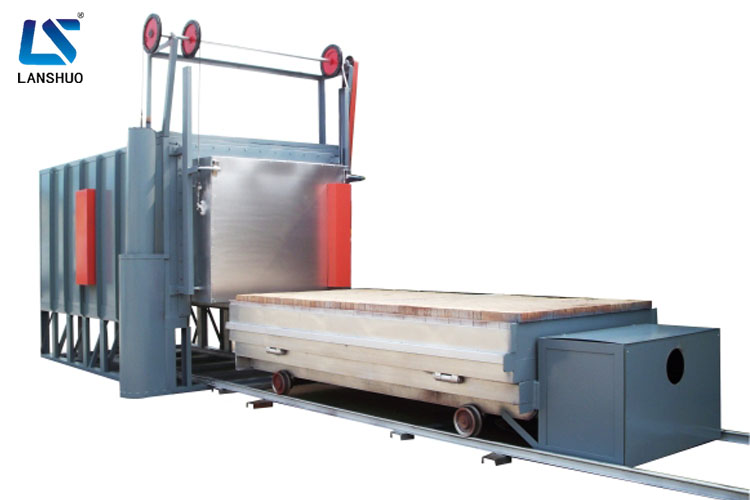

4. Trolley heat treatment furnace Structure:
The trolley furnace consist of furnace shell, furnace linings
,furnace door, door hoisting
appliance, heating element, bogie and driving mechanism, sealing
mechanism, intelligent electrical control system, etc.
Car Bottom Furnace is welded by steel and profiled steel. Furnace
chamber is ceramic fiber and high quality electric resistance wire,
which can save 40% energy than brick furnace chamber. Car Bottom
Furnace is mainly used for annealing, normalizing and stress
relieving of bars and tubes, forgings, large weldments and
castings.
*The furnace chamber size can be customized;
*Good working performance, nice outlook, less consumption and
convenient to move;
*Programmable automatic temperature control system;
*Communication software with USB cable to computer (optional);
*Temperature control can reach to ±1°C;
5.Package of Pit Type Resistance Furnace:
As for packaging: The resistence furnace is wrapped with plastic film for
waterproof, and then put on the pallet.
As for shipping:
1. If you have shippers in China, we can send the machines to them
for free.
2. If you want us to send the machines to you directly, we can send
them to any main port of China promptly.
