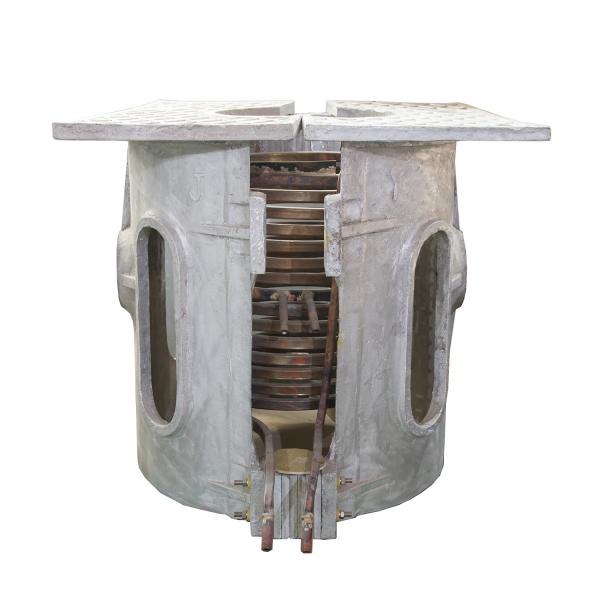

100kg electric industrial metal gold steel scrap melting furnace
1. The induction furnace has advantage as follows:
1.high melting efficiency and good power saving, structure
compact,strong over load ability,
2.the temperature surrounding the furnace is lower, dustless, good
working environment.
3.easy operating process, melting safety,
4.Metal composition is uniform.
5.temperature increasing rapidly, furnace temperature controlled
easily, high productivity efficiency.
6.high utilization rate, melting materials changes easily.
7. Turn on and turn off easily,and power save.
8. Adopt constant power to control the circuit, furnace can
maintain constant power while melting and keep faster melting rate.
9. Set up over voltage, over current and water deficient protector,
and run safely.
9. The motherboard of furnace adopts CAD technology, integrated
circuit board, low-fault-rate, easy-manipulating,effortless
maintenance.
10. Zero voltage starts up softly, high initial owner, no impact
for the furnace electric network.
11. Apply to melting ferrous metal and non-ferrous metal like
copper, aluminum, brass, steel,iron,stainless steel etc.

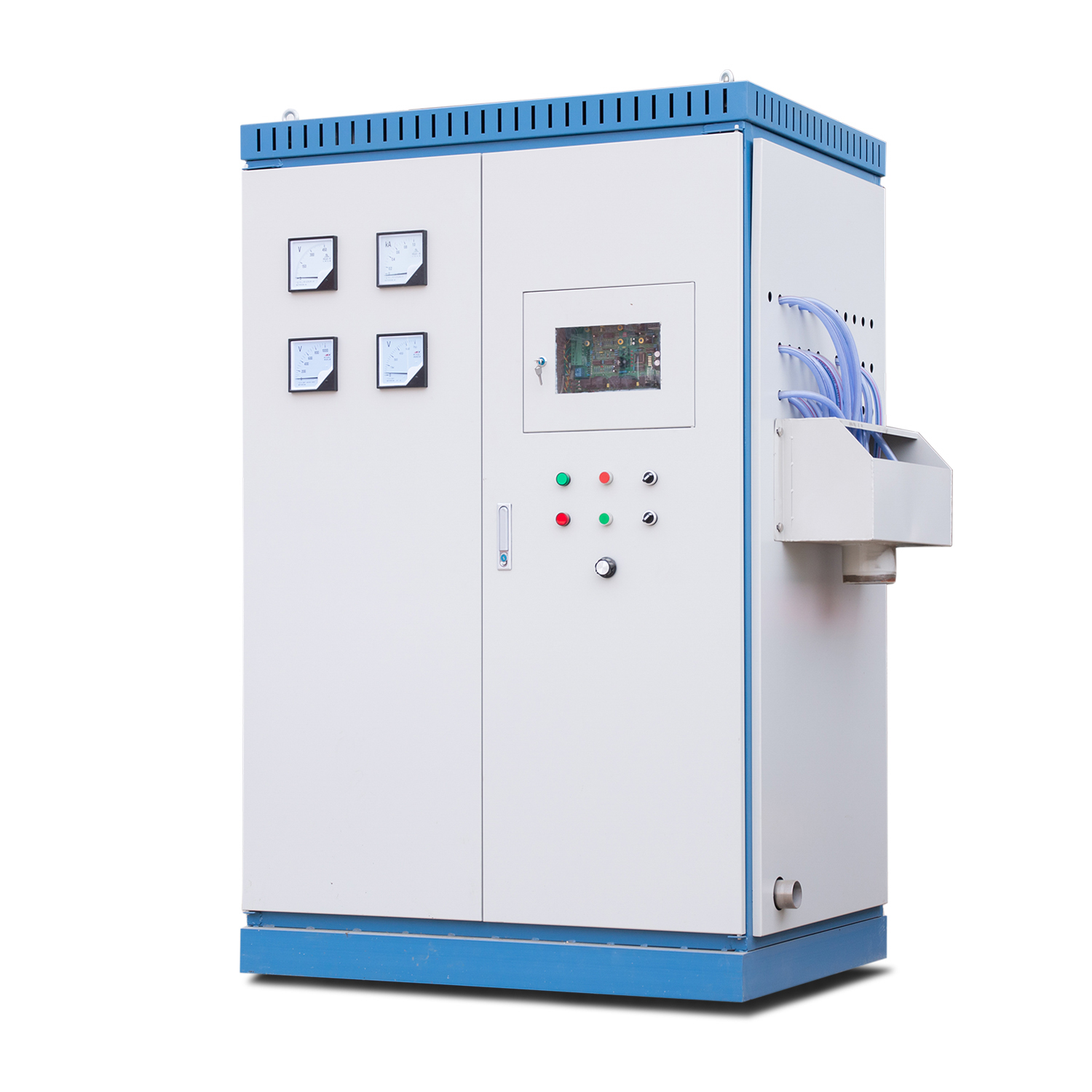

2. Technical Parameter of Large Induction Melting Equipment:
| Model | KGPS-01T/100KW |
| Rated Power | 100kw |
| Rated Capacity | 0.1T |
| Matching transformer's capacity | 150KVA |
| Voltage | 380V, 50/60HZ |
| MF Frequency | 2000HZ |
| Medium Voltage | 750V Phase |
| DC Voltage | 500V Phase |
| DC Current | 200A Phase |
| Rated Temperature | 1600°C |
| Closed Loop Water Cooling Tower | LSN-10B |
3. Large Induction Melting Equipment Application:
Smelting and heating of non-ferrous metals such as cast copper,
gold, silver, aluminium, aluminium alloy, iron, steel, stainless
steel, ferrosilicon, ductile iron, etc.
Domain: Metallurgy, Machinery, Building Materials, Automotive
Parts, etc.
4. Advantage of Large Induction Melting Equipment :
1.This furace offers permanent working power, and does not change
its output power when the load changes, so it can economize on 10%
electricity than other common equipments.
2. It is digitalized circuit, steady operation, reliable and low
failure rate, because there is no complicated starting circuit or
relay subsidiary loops in the main circuit
3. All-solid-state IGBT inverter and functional regulation,
soft-switching dual resonant frequency control auto- tracking
technology are fundamental assurance of high performance and high
reliability.
4. It is small in size & light in weight, saving working space for
our customers.
5. High efficiency & energy-saving, to keep high power factor and
power efficiency when working.
6. Oscillation frequency from 1-20KHz, automatically tracking
applicable frequency.
7. 100% full loading, 24 hours continuously work.
8. Constant output voltage, output power control all functions.
9. Frequency, power, voltage and current are all displayed.
Compared with other control modes, our constant power digital power
supply has the following characteristics:
1). Effective interference suppression measures to the power grid,
so that any electrical equipment in the power grid will not be
affected. The function of impedance regulator can make the
equipment always run in the best state;
2). Compared with the old-fashioned lines, the electricity-saving
effect is obvious, and the electricity can be saved by about
10-20%;
3). The power factor can reach 0.94;
4). The success rate of starting the power supply can reach 100%;
5). The failure rate can be reduced by 90% due to the few
connections, easy debugging and maintenance.
