1-2 Kg High Frequency Gold Melting Induction Crucible Furnace
1. The Features of Gold Melting Induction Furnace
1.Fast heating, wide heating Gold Melting Induction Furnace,The
minimum rate of heating is less than 1second.
2.Comprehensive furnacegold melting electrical furnace
induction Melting Furnace has such functions as over voltage,over
current, overheat and water shortage alarm indications as well as
automatic control and furnace.
3.Easy installation and operationsmall gold melting furnace
induction Melting Furnace can be used when it is connected with
power source, inductions coil as well as water supply pipe and
rising pipe.And you can learn to operate it within several minutes.
4.High effectiveness Gold Melting Induction Furnace
Gold Melting Furnace has such features as uniform heating,fast
warming and limited oxic horizon.
5.Small size and light weight gold melting electrical furnace
Aluminium Melting Furnace has a weight of only several dozens of
kilograms,which can effectively save the workshop space.Gold
Melting Induction Furnace
6.Elimination of high voltagesmall gold melting furnace
Aluminium Melting Furnace requires no step-up transformer which may
produce approximately ten thousand voltages, and thus can ensure
the maximum safety.
2. Technical Parameters of LSW-30 Induction Melting Machine:
| Modle | LSW-30KW |
| Input Power: | 30KW |
| Input voltage: | three phase 380v 50hz |
| Voltage range: | 340V~420V |
| Oscillation frequency: | 25-35Khz |
| Current(max): | 52A |
| continuous load rate: | 100% |
| Cooling water flow(controller) | 25L/Min 0.1mpa |
| Weight | 48kg |
| Dimension | 265*600*540mm |
3. LSW-30 Induction Melting Machine Application:
(1) iron, pig iron, cast iron;
(2) steel, stainless steel, cast steel, carbon steel and bearing
steel;
(3) precious metal such as gold, silver;
(4) copper, brass, bronze;
(5) aluminum, aluminum alloy;
(6) zinc, lead, tin, magnesium, nickel, titanium.
4. Main Features of induction heating Melting machine:
(1) High efficiency: Metal can be heated to its desired temperature, even its melting
point, instantly.
(2) Energy saving: The induction heating machine adopts IGBT from Siemens & LC series
circuit design, saving energy up to 15%-30%.
(3) Low cost: The heating time is short, compared to other heating methods,
significantly reducing the amount of metal loss.
(4) Easy for installation: Following the user manual, even non-professional persons can
install the induction heating machine easily.
(5) Stable operation: complete protection, make customers have nothing to worry about.
(6) No harm to the environment: The induction heating machine uses electricity, producing little
waste gas and water.
5. LSW-30 Induction Heating Melting Machine Package:
As for packaging of induction heating melting machine: The machine is always packed with wrapping film for waterproof,
and then put into a standard exporting plywood case with foam
around for shockproof.
As for shipping of induction heating melting machine:
1. If you have a shipper in China, we can send the machines to him
or her for free.
2. If you want us to send the machines to you directly, we can send
them to any main port of China promptly.
6. Customer Center:
7. Canton Fair
8. Related Products:

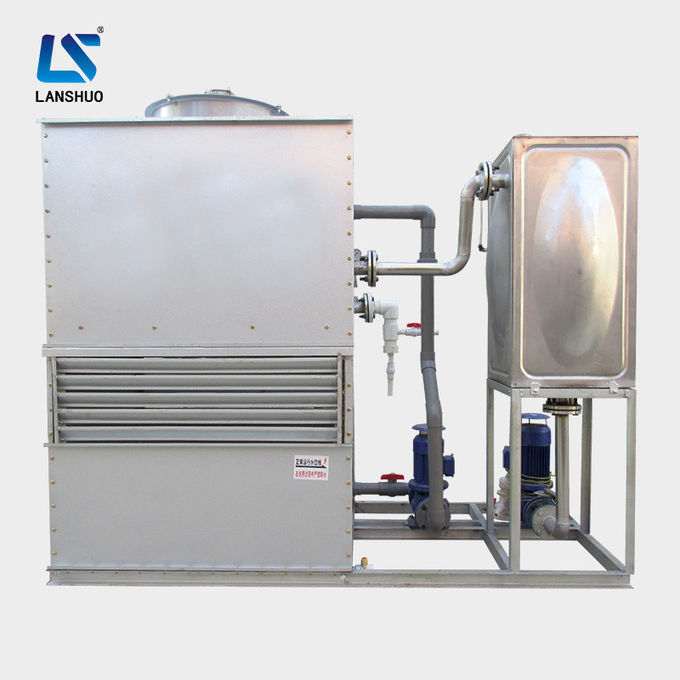

| KGPS Melting Furnace | LSZ Melting Furnace | Cooling Tower |
 |  |  |
