100kg 250kg 500kg 750kg 1000kg metal iron steel copper bronze
aluminum scrap melting furnace industrial furnace

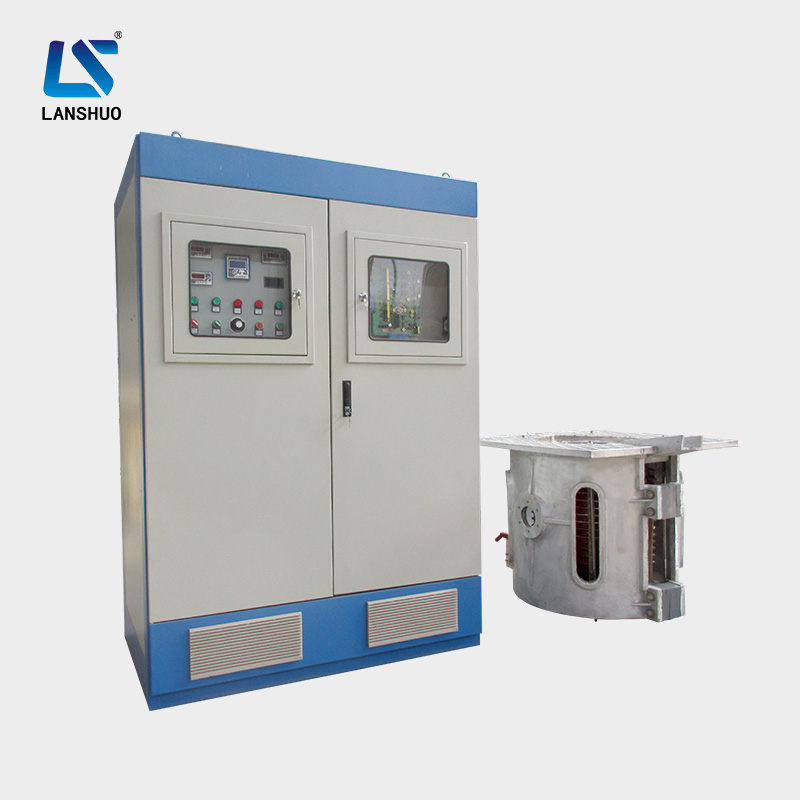

1. Brief Introduction of Medium Frequency Induction Melting
Furnace:
Through long-term practical test, constant power (energy-saving)
Intermediate frequency induction melting furnace has been widely
praised among customers. What’s more, our melting furnace has made
some improvements based on its original type, and its property is
becoming more excellent.
2. Features of KGPS induction melting furnace:
a. High melting rate.
b. Good-quality molten steel, high casting product yield.
c. High power factor. During the machine’s operation, the power
factor can reach over 97%.
d. No harm to the power gird.
e. Low power consumption, saving over 10% energy.
f. High start-up success rate. Under any load, the start-up success
rate is 100%.
g. The main control panel adopts plug-in connector, easier
maintenance.
h. Simple to install. Installation can be done by unprofessional
workers very easily.
i. The melting furnace adopts series thyristor, making the SCR
damage rate to a minimum.
3. Technical Parameter of Large Induction Melting Furnace:
| Model | KGPS-1T/800KW |
| Rated Power | 800kw |
| Rated Capacity | 1T |
| Matching transformer's capacity | 1000KVA |
| Voltage | 380V, 50/60HZ |
| MF Frequency | 1KHZ |
| Medium Voltage | 750V Phase |
| DC Voltage | 500V Phase |
| DC Current | 1600A Phase |
| Rated Temperature | 1800°C |
| Closed Loop Water Cooling Tower | LSN-80B |
4. Large Induction Melting Furnace Application:
(1) iron, pig iron, cast iron;
(2) steel, stainless steel, cast steel, carbon steel and bearing
steel;
(3) gold, silver, platinum;
(4) copper, brass, bronze;
(5) aluminum, aluminum alloy;
(6) zinc, lead, tin, magnesium, nickel, titanium.
5. Certificates
