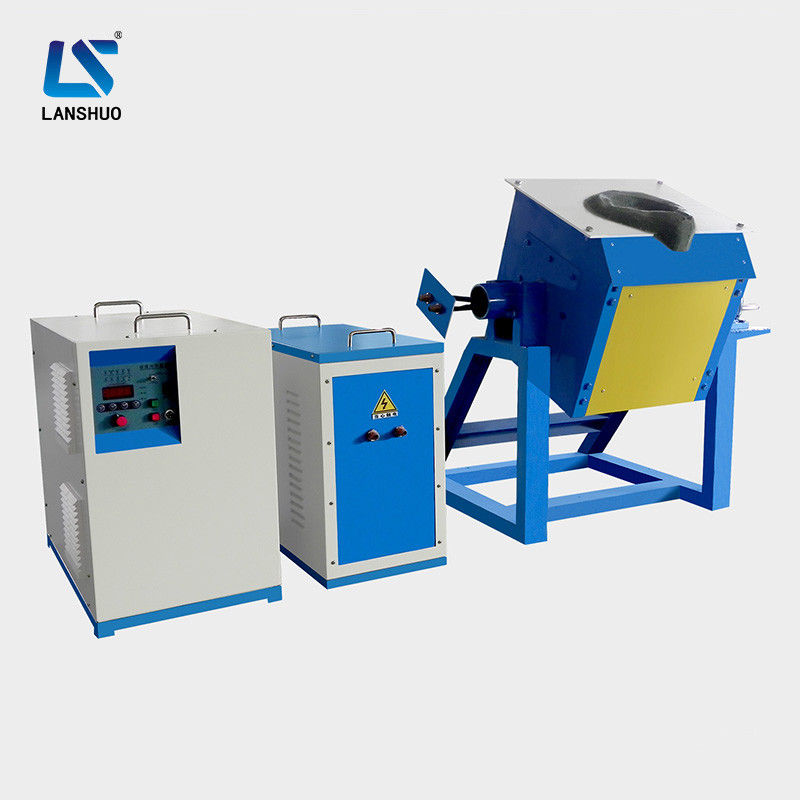

Copper Steel Scrap Cast Iron Metal Induction Melting Furnace Medium frequency IDBT Tilting induction Melting Furnace

Ask Lasest Price
Brand Name :	Lanshuo
Model Number :	LSZ-45
Certification :	CE, EAC
Price :	USD 3,800-4,800
Payment Terms :	Western Union, L/C, T/T, Paypal
Supply Ability :	3000 set per year
Delivery Time :	5 days

Add to Cart

Product Details
Company Profile

Copper Steel Scrap Cast Iron Metal Induction Melting Furnace Medium frequency IDBT Tilting induction Melting Furnace

Main advantages:

1. IGBT module and inverting technologies.
2. High reliability.
3. 100% duty cycle, continuous working is allowed at maximum power output.

4. Simple to install. Installation can be done by unprofessional workers very easily.
5. Convenient to change induction coil or crucible.

Parameters:

Type		LSZ-45
Rated Power		45KW
Intel Coil Cable		35mm2
Control Switch		3*120A
Ground Cable		2mm2
Cooling water pressure		≥0.2MPA
Cooling water flow		≥10L/Min
Melting cooper		50kg
Melting gold		50kg
Melting stainless steel/iron		18kg
Melting Aluminium/Aluminium alloy		18kg
Melting Silver		50kg
Working voltage		3 phase 380V, 50-60HZ
Oscillation frequency		1-20KHZ
Output current		80A
Output voltage		70-550V
Weight		36kg, 21kg
Dimension		650350550mm, 550350500mm

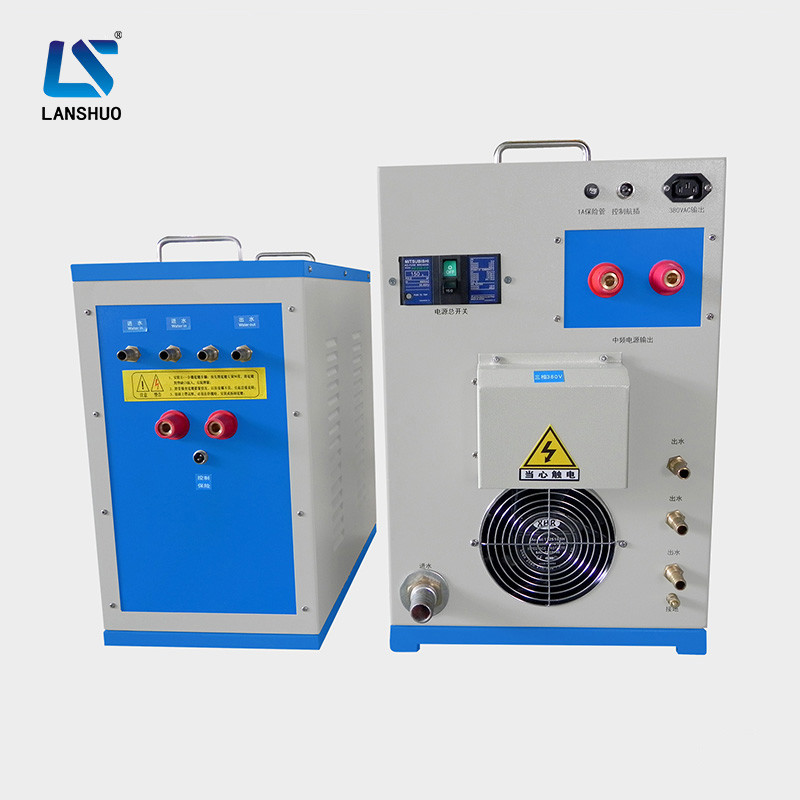

Detailed photos:

Applications:

Copper Steel Scrap Cast Iron Metal Induction Melting Furnace Medium frequency IDBT Tilting induction Melting Furnace

Workshop:

Packing & delivery

As for packaging:
1. Machine is always wrapped with a film layer, and then packed with a paper box.
2. Then put the wrapped machine into a wooden case(Standard exporting ctn), and wrap the machine with foam around

As for shipping:
1. If you have shipper in China around, we can send the machine directly to them for free.
2. If you want us sending the machine to you directly, we can send the machine to China any main ports promptly.
